| Model |
S21 XP+ Hyd.
|
| Crypto algorithm/coins |
SHA256|BTC/BCH/BSV |
| Typical hashrate, TH/s(2-1) |
500 |
| Power on wall @35℃(2-2), Watt(2-1) |
5500 |
| Power efficiency on wall@35℃(2-2), J/T(2-1) |
11 |
| Detailed Characteristics |
Value |
|
| Power Supply |
|
| Phase |
3 |
| Input voltage, Volt(3-1) |
380~415 |
| Input frequency range, Hz |
50~60 |
| Input max current, Amp |
12 |
| Hardware Configuration |
|
| Networking connection mode |
RJ45 Ethernet 10/100M |
| Server size (length*width*height, w/o package), mm |
339*173*207 |
| Server size (length*width*height, with package), mm |
570*316*430 |
| Net weight, kg |
14.8 |
| Gross weight, kg |
16.7 |
| Environment Requirements |
|
| Inlet coolant temperature, °C |
20~50 |
| Coolant flow, L/min |
8.0~10.0 |
| Coolant pressure, bar |
≤3.5 |
| Working coolant(3-2) |
Antifreeze/Pure water/Deionized water |
| Coolant pH value |
Antifreeze: 7.0~9.0
Pure water: 6.5~7.5
Deionized water：8.5~9.5 |
| Diameter of coolant pipe connector, mm |
OD10 |
| Storage temperature, °C |
-20~70 |
| Operation humidity(non-condensing), RH |
10~90% |
|
|
|
|

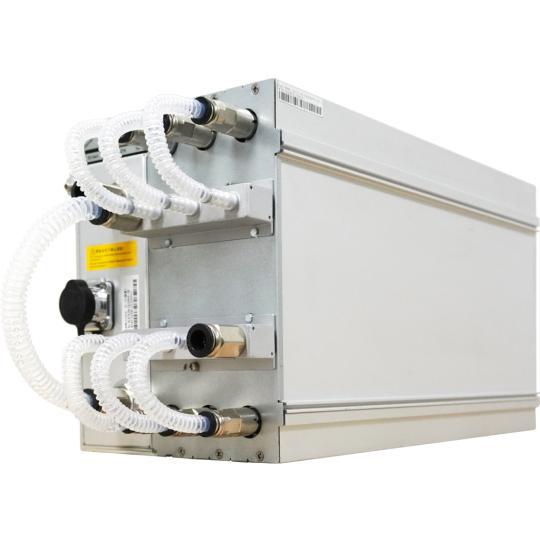

Product Image
|
